E Series — tank-mounted piston compressors, piston compressor 7.5 kW

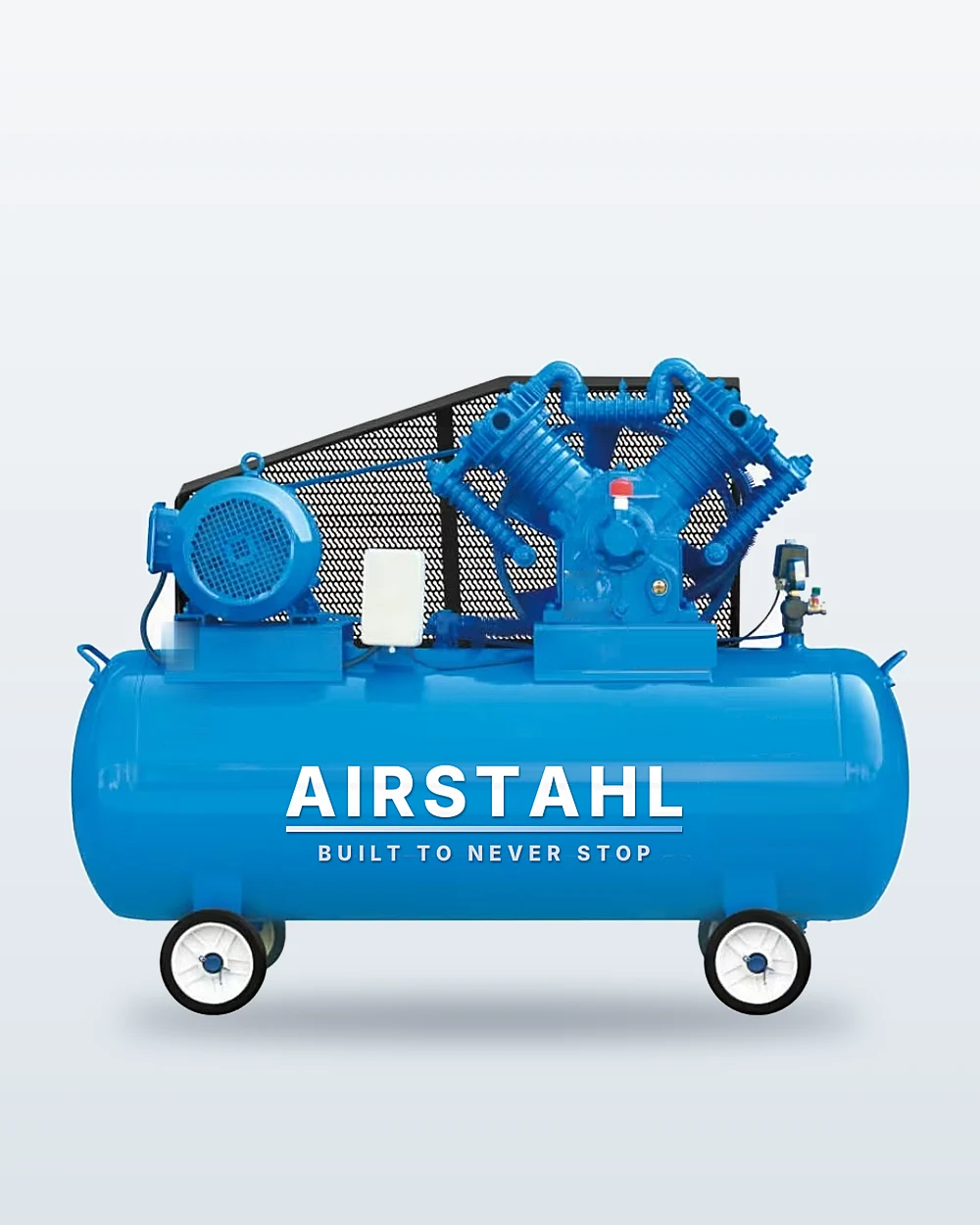

E 75 HPTwo-stage piston compressor 7.5 kW, 12.5 bar
High pressure for truck tyres and demanding tools.
On a 300 L air receiver, on wheels, ready to connect.
On quote
- 2 years warranty
- Parts for 15 years · stock in France, près de Paris
- Delivery · Lead time to be confirmed
- CE compliance
Availability to be confirmed
Order Request a quoteTechnical data sheet (PDF) : PDF to be supplied
- User manual : coming soon
- Installation manual : coming soon
- CE declaration : coming soon
- All downloads
Volume discounts and reseller pricing on quote.
Manual, interface and documentation in French. After-sales service provided in France.
Description
A two-stage compressor: air is first compressed in two large cylinders (Ø 105 mm), cooled in an intercooler, then compressed again in two small cylinders (Ø 55 mm). The result: 12.5 bar with cooler air and a pump that runs cooler, at only 760 rpm.
- 7.5 kW (10 hp) three-phase motor, 1.05 m³/min air flow.
- 300 L air receiver on wheels, pressure switch and safety valve.
- Built for truck tyre inflation, plant workshops and tools that need pressure.
- Every machine is checked and tested before shipping.
| Power | 7.5 kW |
|---|---|
| Technology | Two-stage piston compressor, 4 cylinders with intercooler, belt drive |
| Maximum pressure | 12.5 bar |
| Air flow | 1.05 m³/min |
| Air receiver | 300 L |
| Power supply | 380 V three-phase / 50 Hz |
| Outlet connection | To be completed |
| Dimensions | 1600 × 580 × 1200 mm (L × W × H) |
| Weight | 330 kg |
| Documentation | Manual and interface in French |
| Warranty | 2 years |
Maintenance and installation
Related consumables
Connection
Connection hose Part number to be confirmed
On quote
ViewPack: compressor + service kit + pressure gauge + connection hoses — Pack offer to be confirmed Request the pack on quote
Frequently asked questions
What use is a piston compressor suited to?
Intermittent use: tyre inflation, occasional tightening, blow guns, small tools. If air is used for a large part of the day, choose a screw compressor.
Do your piston compressors have an air receiver?
Yes, AIRSTAHL piston compressors are supplied with a built-in air receiver. The capacity of each model is given on its technical data sheet.
What is the warranty?
AIRSTAHL compressors come with a 2-year warranty. Spare parts remain available for 15 years, with stock in France.
Do you offer discounts for multiple machines?
Yes. For an order of several machines, or if you are a reseller, request a quote: we will reply with suitable pricing.
E Series — tank-mounted piston compressors
4kW
Piston compressor
E 40Piston compressor 4 kW
The simple, robust piston compressor for the workshop and the garage.
On quote
View
7.5kW
Piston compressor

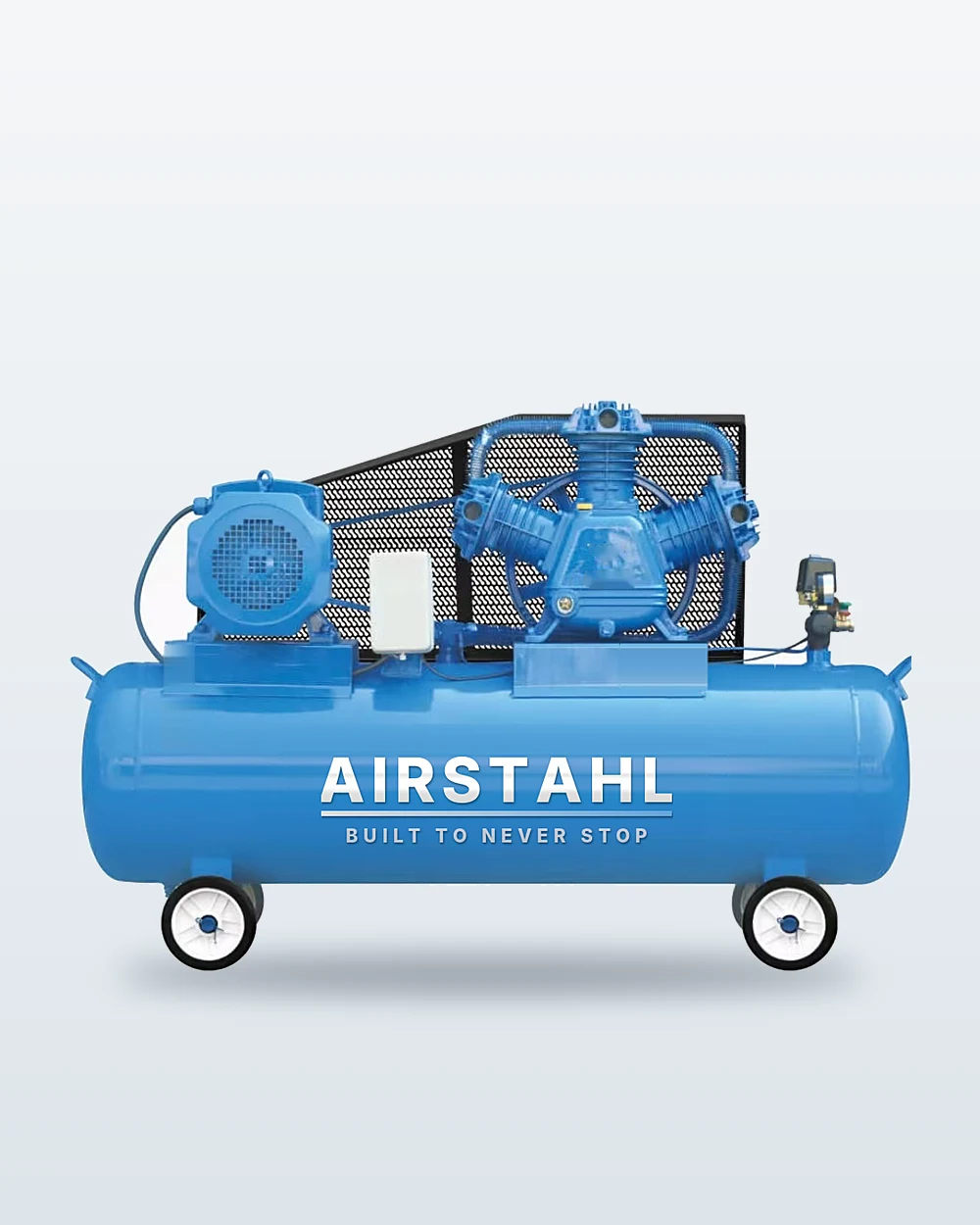

E 75Piston compressor 7.5 kW
More power for the garage's air tools.
On quote
View
11kW
Piston compressor

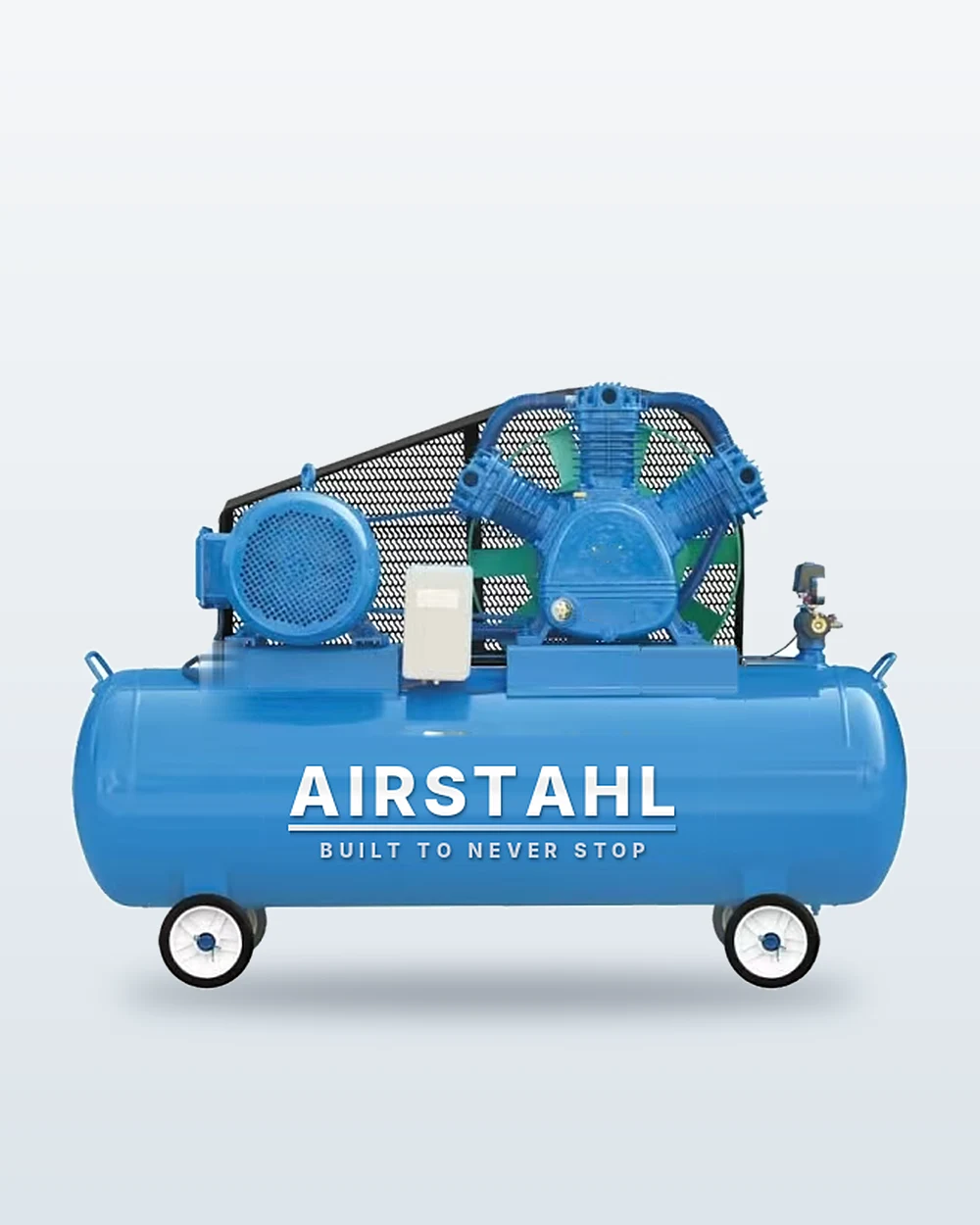

E 110Piston compressor 11 kW
The most powerful piston compressor in the range.
On quote
View E 75 HP — Two-stage piston compressor 7.5 kW, 12.5 bar
